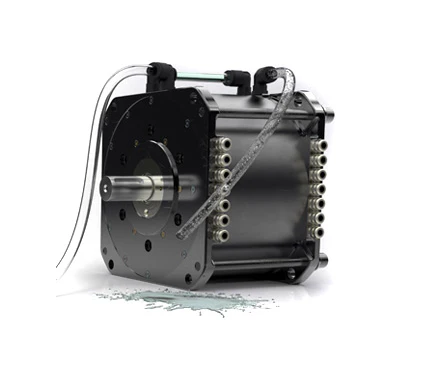

20 KW Liquid Cooled BLDC Motor

Experience unparalleled performance and reliability with our 20kW liquid-cooled BLDC motor. With unparalleled efficiency and power, it's perfect for electric vehicles, marine use, and industrial applications. So why settle for anything less? Elevate your experience with our Golden Motor.

• 20KW bearing: 6307-2Z

Drive Motor Kit Typical Setup(.jpg)

Drawing(.PDF)

20kw 3D Drawing(.STEP File)

Curve (72V)

Data (72V)

Curve (96V)

Data (96V)

Data (120V)

Curve (120V)

Certificate of Conformity

Our HPM20KW 20,000W BLDC Motor has undergone full independent EMC testing at EMTEK Shenzhen, an ISO/IEC 17025 accredited laboratory. The motor passed all required CE EMC Emissions & Immunity tests, ensuring stable performance in demanding industrial and EV environments.

CE-Compliant (EMC Directive)

Tested according to:

• EN IEC 61000-6-4:2019 — Industrial EMC Emissions

• EN IEC 61000-6-2:2019 — Industrial EMC Immunity

EMC Emission Testing – PASSED

• Radiated emissions 30 MHz – 1 GHz: PASS

• Meets strict EU industrial limits for electrical noise and interference

Electrostatic Discharge (ESD) Immunity – PASSED

Tested to IEC 61000-4-2:

• ±8 kV Air Discharge

• ±4 kV Contact Discharge
  Performance result: Criterion B – Recovers automatically without loss of function

RF Field Immunity (80 MHz – 6 GHz) – PASSED

• Tested up to 10 V/m

• Horizontal & vertical polarization
  Performance: Criterion A – Zero performance degradation

Magnetic Field Immunity – PASSED

• IEC 61000-4-8, 30 A/m field strength

• Tested in X/Y/Z coil orientations
  Performance: Criterion A
