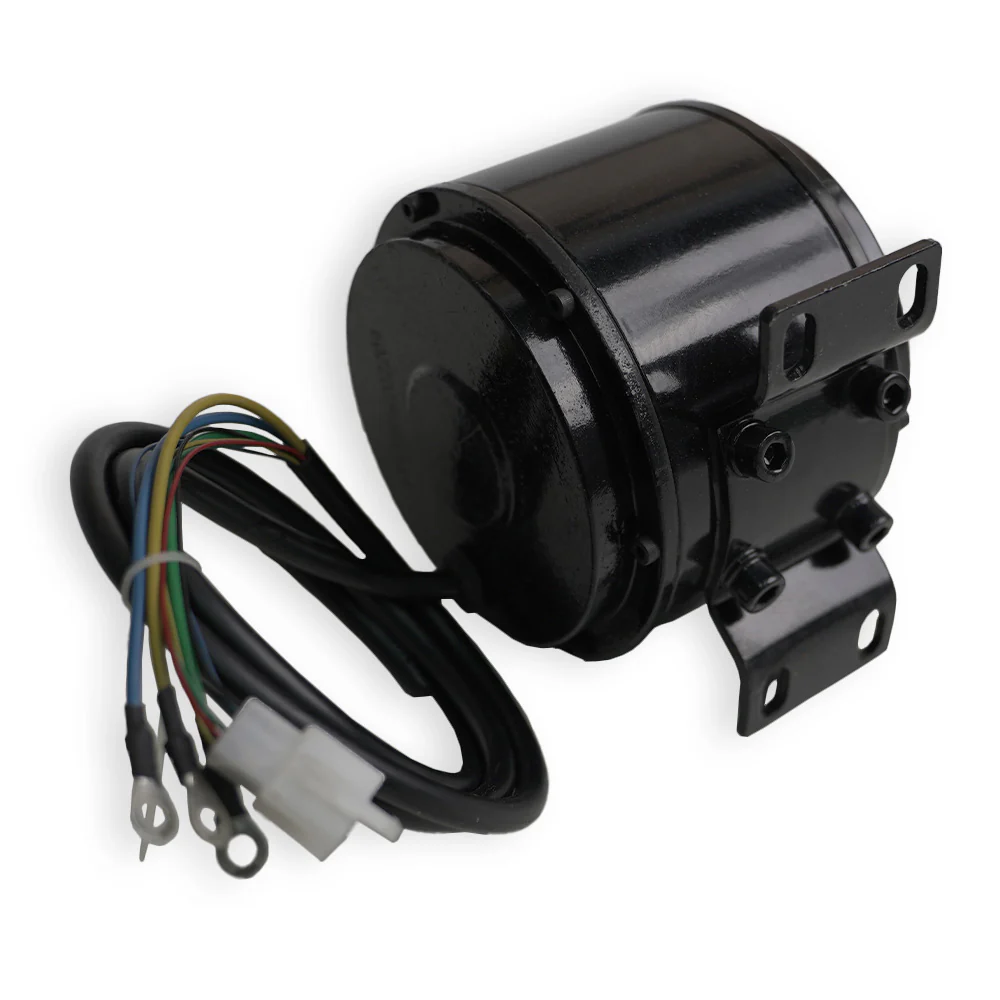

BLDC 500 Watt Motor
BLDC 500 Watt motor, offering efficient and reliable power for e-bike systems, providing smooth acceleration and optimal performance for various electric vehicle applications.
- Medium speed high torque brushless motor
- High energy efficiency (85 %)
- Chain size: 40
- Light weight
- Voltage: 36V-60V
- Power Rate: 500W-1000W

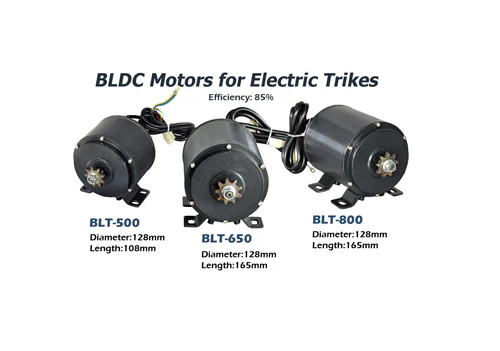

- Diameter: 128 mm
- Length: 108 mm
500W Motor Performance Curve
CE-Compliant (EMC Directive)
Certified to:
-
EN IEC 61000-6-4:2019
-
EN IEC 61000-6-2:2019
EMC Emissions – PASSED
-
Radiated emissions compliance from 30 MHz – 1 GHz
Electrostatic Discharge Immunity – PASSED
-
±8 kV Air, ±4 kV Contact
Performance: Criterion B
RF Field Immunity – PASSED
-
80 MHz–6 GHz, 10 V/m
Performance: Criterion A
Magnetic Field Immunity – PASSED
-
30 A/m magnetic stress test
Performance: Criterion A
