72V 20Ah Triangle Pack (LG Cells)

Golden Motor offers high power and extended range, providing reliable energy for your e-bike's long rides.

72V 20Ah Lithium Battery

• • Nominal Voltage: 72V
  • Nominal Capacity: 20Ah
  • Nominal Energy: 1,440Wh
  • Configuration: 20S4P
  • Battery Type: Lithium-ion

  • Cell Capacity: 5000mAh

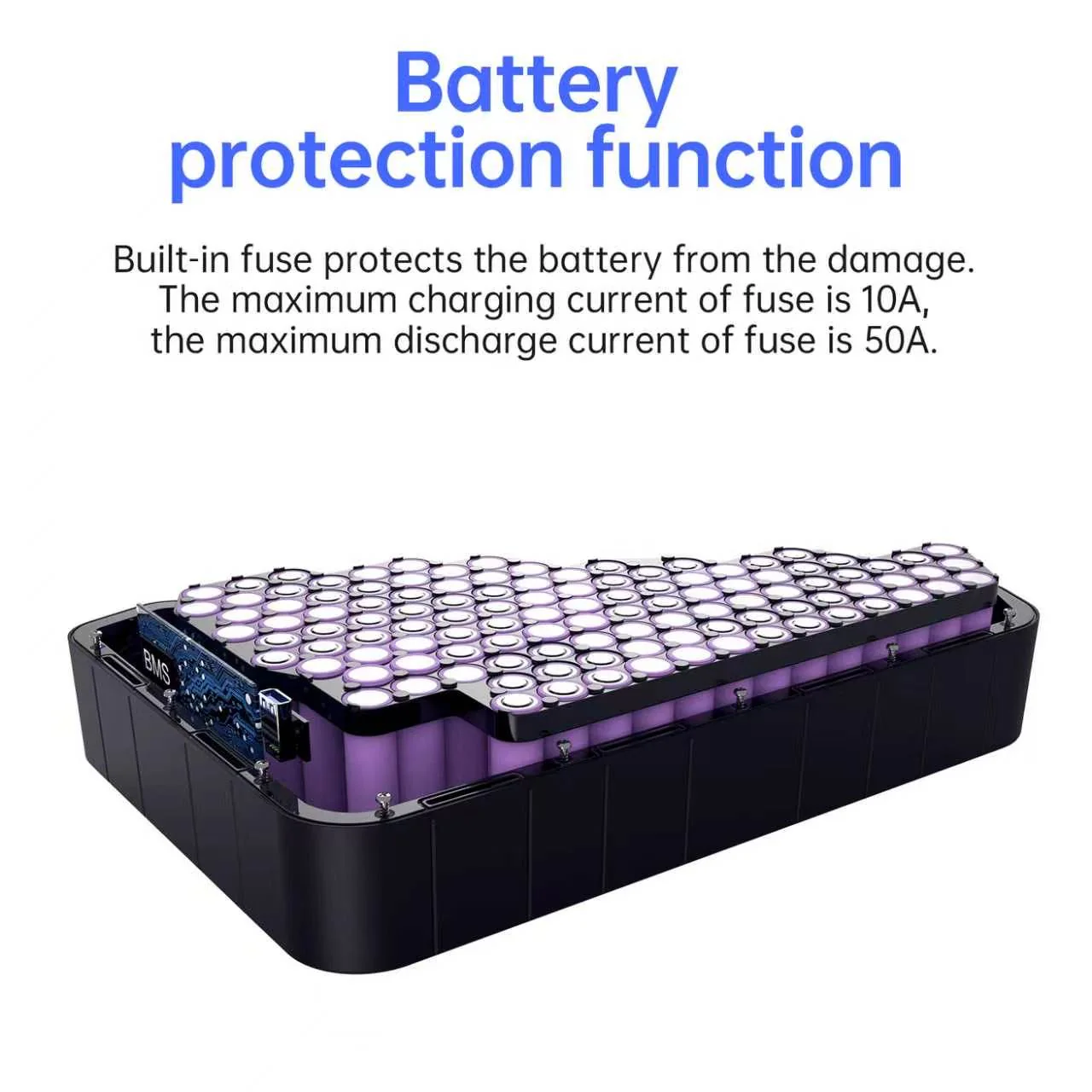

  • Built-in BMS: 60A
  • Max Continuous Discharge: 60A
  • Discharge Cut-off Voltage: 54V
  • Charging Cut-off Current: 0.02C
  • Charge Current: 5A Max
  • Maximum Charge Voltage: 84V
  • Charge Cycles: ≥800 (>80% capacity retention)
  • Charger Included: 84V 4A Charger (US Plug)
  • Battery Weight: ~7Kg

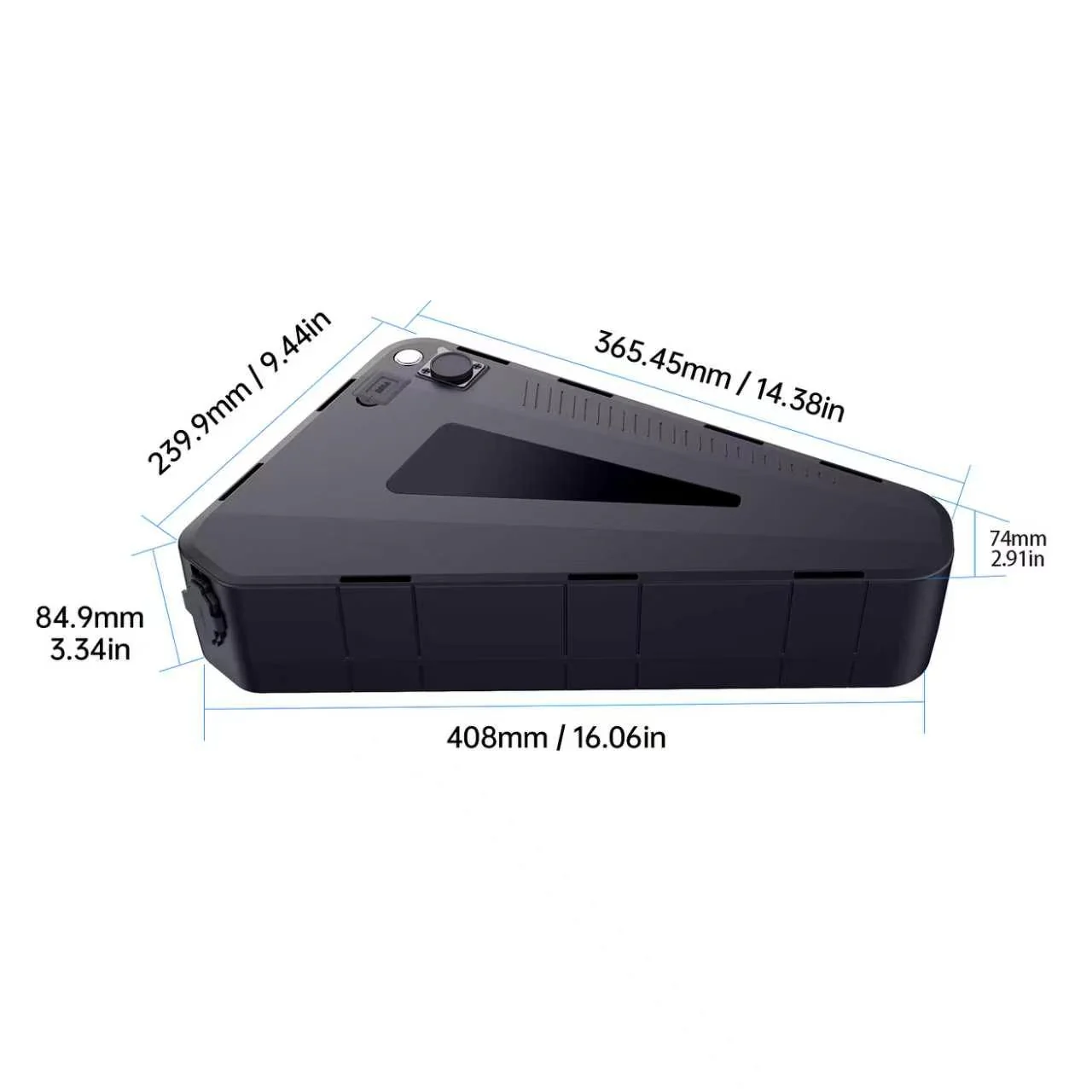

  • Dimensions: 408 × 74 × 365 × 240 × 85 mm (16.06 × 2.91 × 14.37 × 9.45 × 3.35 in.)
  • Charge Temperature: 0 to 45°C
  • Discharge Temperature: -10 to 60°C

1. Do not dispose in fire or heat.
2. Do not puncture, damage and disassemble.
3. Charge with Li-ion exclusive charger.

How to maintain the battery? The battery should be stored in clean, dry, ventilated, dark environment. When unused, keep it at half charge and recharge it every 3 to 6 months.

Charging Instructions

The charger’s indicator light will display red while the battery is charging. Once the battery is fully charged, the indicator will change to green.

How to prolong your lithium ion battery? Recharge your batteries before they are completely dead. After every 30 charges, allow your lithium based battery to completely discharge before recharging. What about warranty?

• We provide 12 months warranty
• Product quality guaranteed by PAIC insurance
